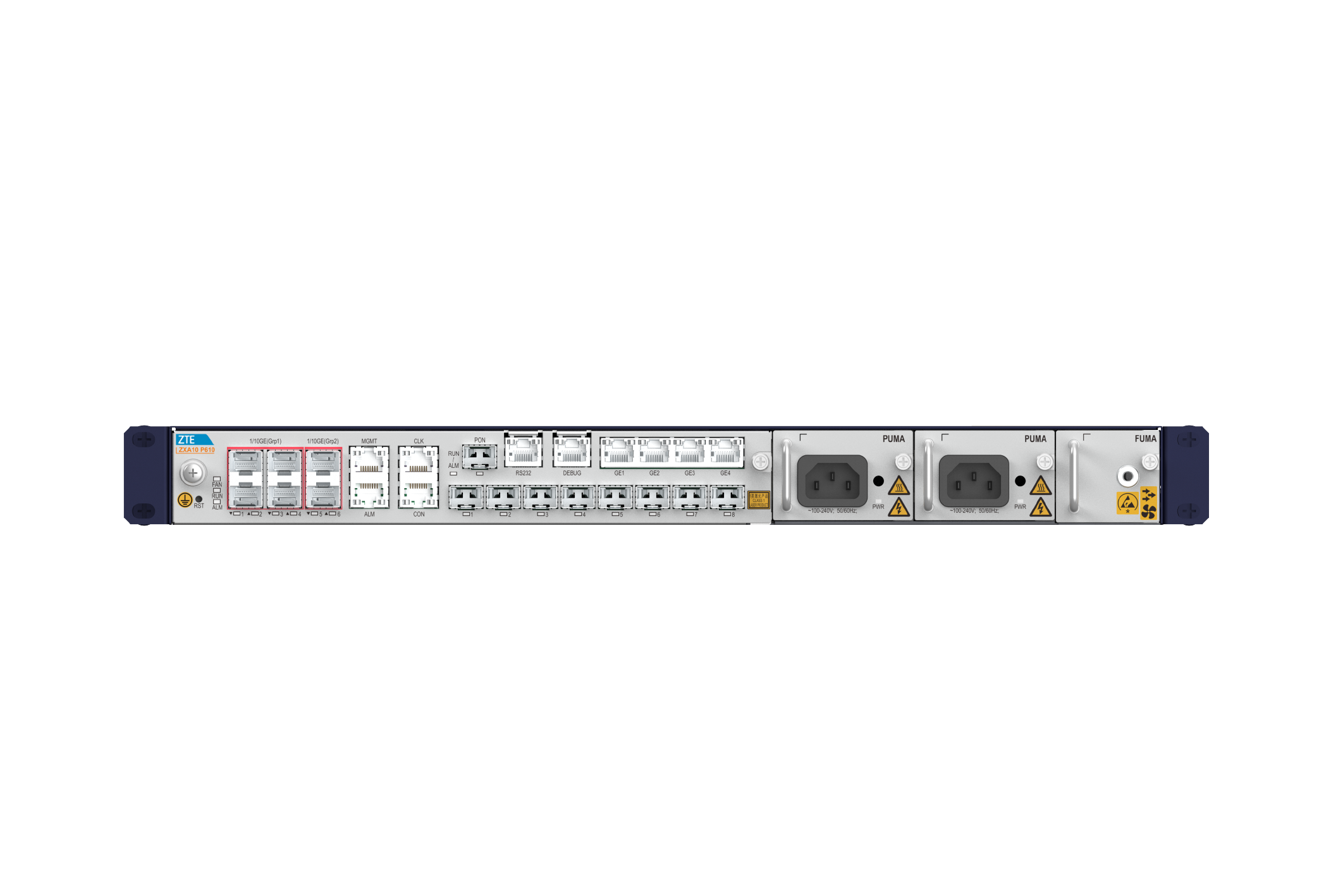

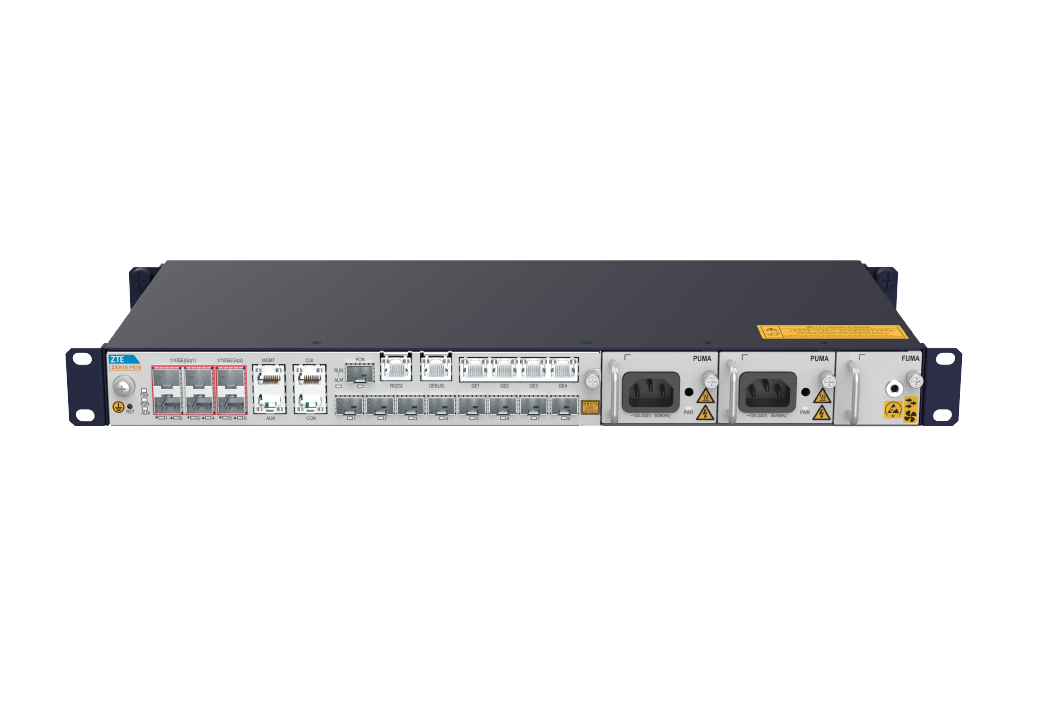

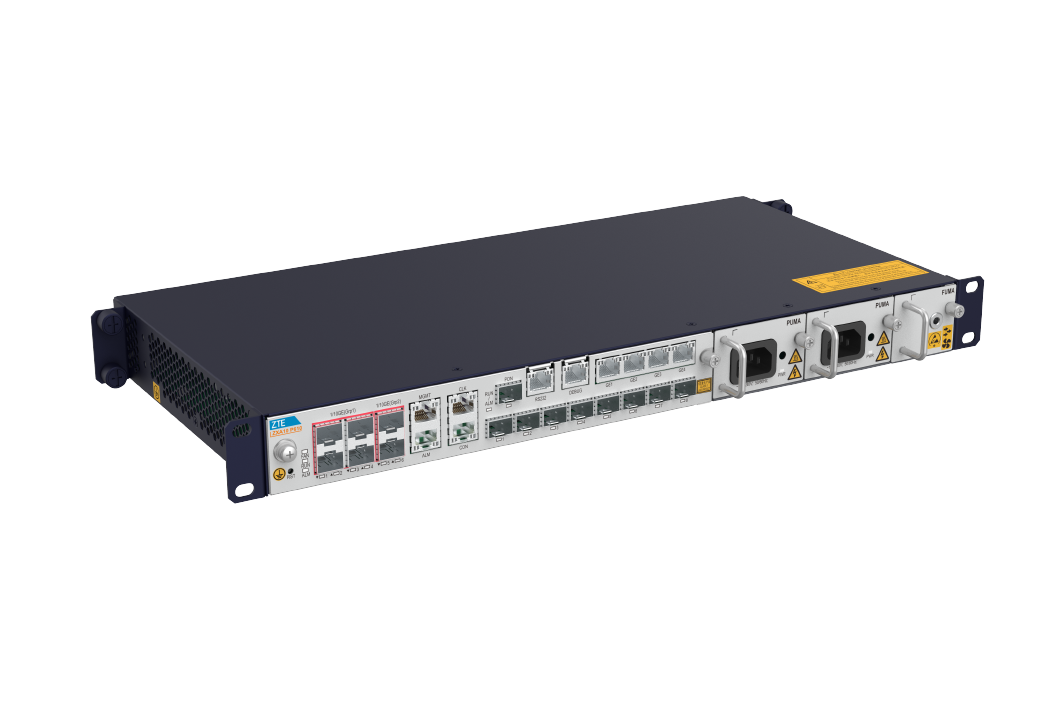

Optical Business Gateway — ZXA10 P610
The ZXA10 P610 is a pizza-box type optical business gateway that can act as a PON OLT or an ONU. It can meet the requirements of campus and enterprise customers for voice, data, and video services by providing the access to a variety of terminals.
Product Highlights
- · Small size, compact design with powerful capabilities
- · Full security protection and high reliability
- · Meet multi-scenario demands, can serve as PON OLT or ONU
Architecture
The ZXA10 P610 Is An Optical Business Gateway
The ZXA10 P610 can function as an integrated gateway in the network topology. A variety of terminals can be connected to the ZXA10 P610 to meet enterprise users' requirements for premium bandwidth.
Product Parameters
- Dimensions (H x W x D)
- 43.6 x 442 x 220 mm
- Power supply
- 110 VAC/220 VAC, 1 + 1
- Operating temperature
- -40℃ ~ +55℃
- Relative humidity
- 5% - 95%
- SNI
- 1 x XGS-PON, 6 x 10GE/GE P2P
- UNI
- 8 x GPON/XGS-PON/Combo PON/Any-PON + 4 x GE (Electrical) + 6 x 10GE/GE (Optical)
